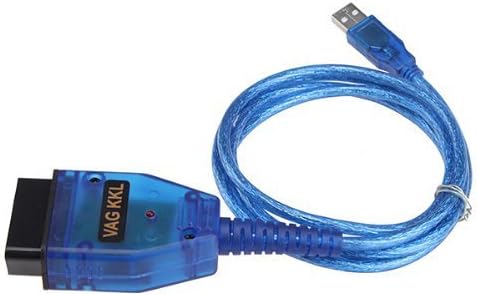

VAG KKL 409.1 is China obd 409.1 KKL USB cable. VAG-COM 409.1 KKL have the functions of a factory VAG-1551 or VAG-1552 scan tool and more. Need free download link for Vagcom 409.1 KKL USB Software? There is a simple script that will fool the VAG-COM 409.1. What you need: VAG-COM 409.1 release.exe Vag-Com 409.1 Cr.exe starter.bat - simple script.
The shareware version of Ross-Tech's VAG-COM package - version 409.1 - was written in 2004, and so was never designed to work with Windows 7.- Driver For USB KKL VAG-COM 409.1 Compatible Interface For VW/AUDI/SEAT/SKODA (120CM-Length) Device.
- Driver For USB KKL VAG-COM 409.1 Compatible Interface For VW/AUDI/SEAT/SKODA (120CM-Length).
Vag Kkl 409.1 Driver Windows 7 Download Free
Ross-Tech have since released VCDS-Lite, which is compatible with Windows Vista / 7, and so is a better option.However, should you still wish to use VAG-COM 409.1, it can be made to do so if installed correctly, using the steps below.
| VW Audi Seat Skoda USB Interface for VAG-COM 409.1 or VCDS Lite - most VAG 1996-2003 |
Vag 409.1 Drivers
Stage 1: Install the USB drivers for the interfaceTo get your interface up and running, you need to install software device drivers for the USB interface.
If you are installing the package on a PC that is connected to the internet, Windows 7 can automatically locate and install suitable drivers via Windows Update.
Just connect the interface to a USB port on the computer - Windows will then show a notification that it is locating and installing device drivers...
...and then another message when the installation is complete...
If the PC you are installing on is not connected to the internet, you will need to download the drivers via another PC and install them before connecting the interface. Windows 7 compatible drivers are available here:
Vag Kkl 409.1 Driver Windows 10 64 Bit
Once the drivers are installed, you need to determine which COM port has been assigned to the interface by Windows. To do this you need to go into the Windows Device Manager.
Find the 'Computer' link on the desktop or the Start Menu, click the Right Mouse Button on it and choose Properties:
When the 'System' box appears, click on the Device Manager link on the left hand side:
Then when the Device Manager window appears, click on the arrow next to 'Ports (COM & LPT)' to see which COM port has been assigned to your interface - it will show as a 'USB Serial Port':
VAG-COM 409.1 can only connect to a COM port between COM1 and COM4.
- If the port number assigned to your interface is between 1 and 4, remember which port it's on, then skip to stage 3 - installing VAG-COM.
- If the port number assigned to your interface is higher than 4 (in the example above it is COM8), then you will need to change the port number.
To do this, double-click on the USB Serial Port to go into its properties, then click on the Port Settings tab:
Then click on the 'Advanced' button - this will show you a list of all the COM port numbers you could assign to the interface. Select a port number between 1 and 4 then press ok (if possible choose one that is not shown as 'in use'):
Once that is done, click ok until you are back to the Windows desktop.
Stage 3: Download and install the VAG-COM Software
Next you need to download VAG-COM 409.1 from the Ross-Tech website:
www.ross-tech.com/vag-com/download/archives.html
(Use the link for version 409.1 - shown as 'For MODERN SERIAL Interfaces')
Save the file to your computer, then run it.
When installing VAG-COM on Windows 7, it is important that you do NOT install it within the 'Program Files' folder. Windows 7 protects this folder and prevents programs from writing files into it, which would prevent VAG-COM from working.
So when you see the screen showing the location for installation, change it to another folder, e.g. C:Ross-TechVAG-COM:
Once you have changed the installation location, click install, and wait for it to complete installation. The installer may not give a confirmation window - it may just disappear when it is finished.
Stage 4: Configure the VAG-COM softwareFinally there are a few changes you need to make to get the software up and running.
VAG-COM requires administrator access to function, so find the shortcut to 'VAG-COM Release 409-1', click the Right Mouse Button on it, and choose Properties.
Then on the Properties page, select the 'Compatibility' tab, and tick the option marked 'Run this program as an administrator':
Click on 'Apply', then 'OK'.
You may need to repeat this for the shortcut on the Start Menu.
Vag Kkl 409.1 Driver Windows 7 32 Bit
That should be all the preparation done. The final step is to open the VAG-COM software by that shortcut, go into the Options page, then select the COM port your interface is configured on:
Once you've selected the port, click Test, then OK. You should now be able to use the software.
Vag Com Kkl 409 1 Driver For Windows 8
It should be noted that vag com 409.1 kkl cable does not work on vehicles running on can bus system. cable must be plugged into the vehicle with ignition on. test the cable with each com port from 1 to 4 in windows device manager. make sure that the driver is installed and configured as explained in step 1. Driver for usb kkl vag com 409.1 compatible interface for vw audi seat skoda (120cm length) device. usb devices. manufacturer. generic. also known as. e51632. vag com. model no. v580. drivers for operating system(s) windows 98. windows 98se. windows me. windows 2000. windows xp 32bit. jump to drivers download. basic specs: model: v580; designed. Compatible product: vag kkl 409.1 obd2 usb diagnostic interface cable 1. go to and download the vcds lite software and the drivers (cdm v2.08.30 whql certified windows drivers) 2. now plug the vag com 409.1 usb cable into your pc. windows will automatically detect the interface and attempt to find the correct drivers. 3. Ross tech: vag com: usb driver installation. early in their development, we found a number of technical advantages to using a “direct” usb driver which bypasses the windows serial drivers entirely. then select the location where you unextracted driver pack 2. we’ve found no real pattern why it uzb on some systems and not on others. 1. install vag com 409 cable driver. please download the drive from the link: ftdichip drivers cdm cdm21226 setup.zip double click to download file: cdm21226 setup.exe.zip to unpack the file. 2. click extract 3. click next.
Usb Kkl Vag Com For 409 1 Driver For Windows 7
Hi gang. i don't expect much help here, but want to support ross tech if at all possible. please, bear with me there is a open source subaru diagnostic data logging program called ecuexplorer. it requires a vag com cable kkl 409.1 (from what i gather) i currently have a hex can cable (legit, as i registered it here) i have a couple of questions. Приобрести оригинальный k line адаптер vag com 409.1 на качественных чипах ftdi ft232rl вы можете в нашем магазине по ссылке 1. Для установки драйвера Вам необходимо подключить vag com 409.1 (k line) адаптер в usb вход на компьютере. Подключение и установка драйверов vag com 409.1 kkl кабеля диагностики автомобиля в windows. vag com 409.1 kkl car diagnostics cable Это руководство поможет вам подключить и настроить kkl usb кабель vag com 409,1 на вашей. Vag kkl 409.1 will be fully suitable with nearly all for vw for audi for seat for skoda vehicles including those with kkl, but without can bus. vag com 409.1 kkl interface (adapter) is usually utilized as an interface and a usb cable connection to link a for vw for audi automobile to a computer with usb interface for on board diagnostics (obd). Installing vag com 409.1 on windows 7 extract the driver from the folder. plug the cable in, don't let the computer automatically install the driver. audi tt 8.
